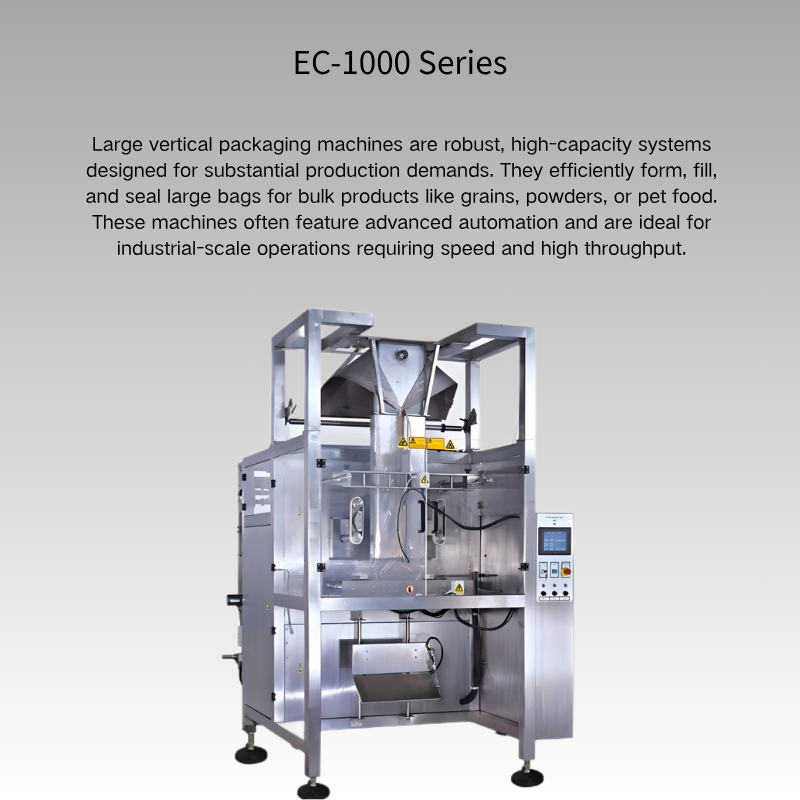

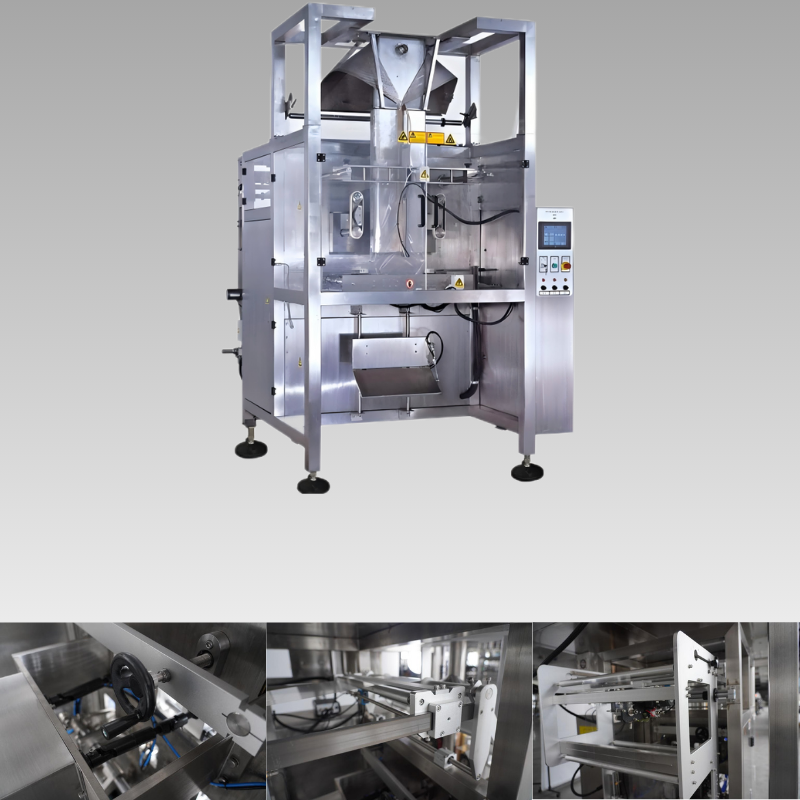

Vertical Form Fill Seal Machine | EC-1000 Series
The EC-1000 Series is a vertical packaging machine specially designed for large-format products such as pet food, rice, feed, and fertilizer. Featuring an ultra-wide 1000 mm film layout and smart control technology, it ensures stable and efficient packaging of large bags. It is ideal for industrial-scale packaging of various granules and powders.
- Overview
- Recommended Products

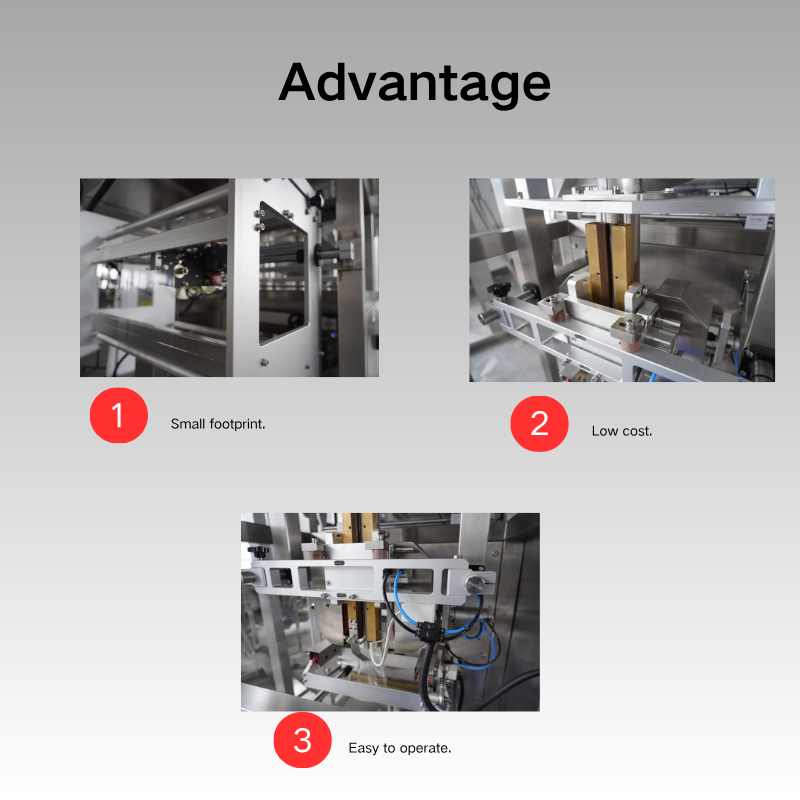

Product Advantages
Gas Handling System
• Nitrogen Flushing Unit – Extends food shelf life
• Vacuum System – Maintains product freshness
Bag Shape Enhancement
• Gusseting Device – Improves stability of stand-up bags
• Bag Support Unit – Prevents collapse of large-format bags
Special Processing Features
• PE Sealing Unit – Enhances sealing strength for PE films
• Charging & Pressing Device – Enables fast filling of large-volume products
Safety & Protection Systems
• Anti-Clamping Device – Prevents material from contaminating the seal
• Anti-Static Device – Reduces powder adhesion to the film
Product Parameters
| Parameter | EC-1000 | EC-1200 |
|---|---|---|
| Packing Speed | 10-30 bags/min | 5-25 bags/min |
| Film width | 510-1000 mm | 610-1200 mm |
| Packing film thickness | 0.05-0.10 millimeters | 0.05-0.10 millimeters |
| Bag Length | 100-600 millimeters | 100-800 millimeters |
| Bag Width | 240-480 millimeters | 290-580 millimeters |
| Size | 2170*1780*2740 millimeters | 2170*1780*3040 millimeters |
| Power Supply | 220V 50HZ 5.5 KW | 220V 50HZ 6.0 KW |
