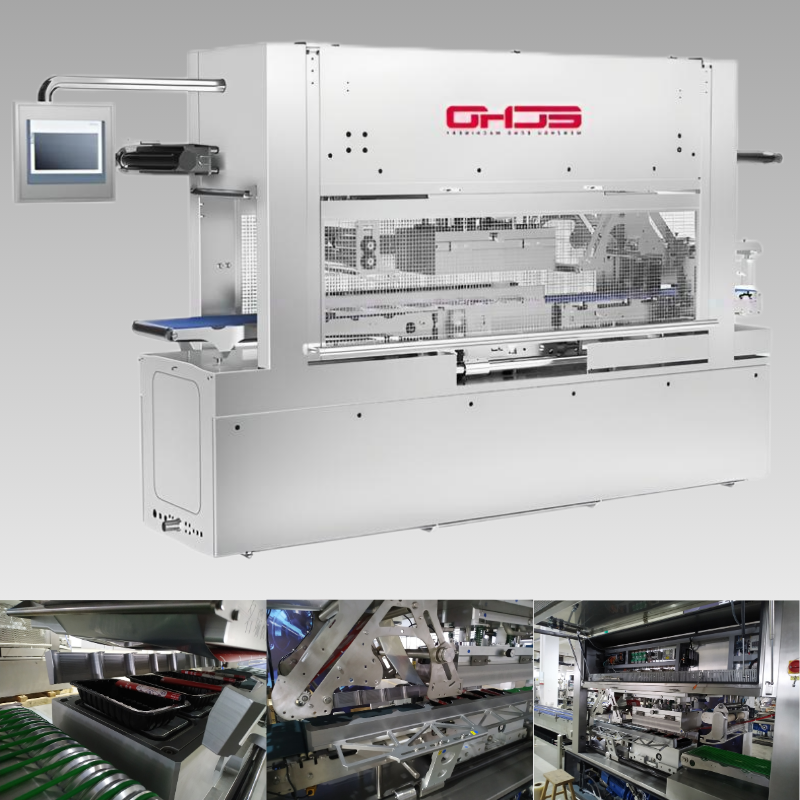

Tray Sealing Machine | TA750

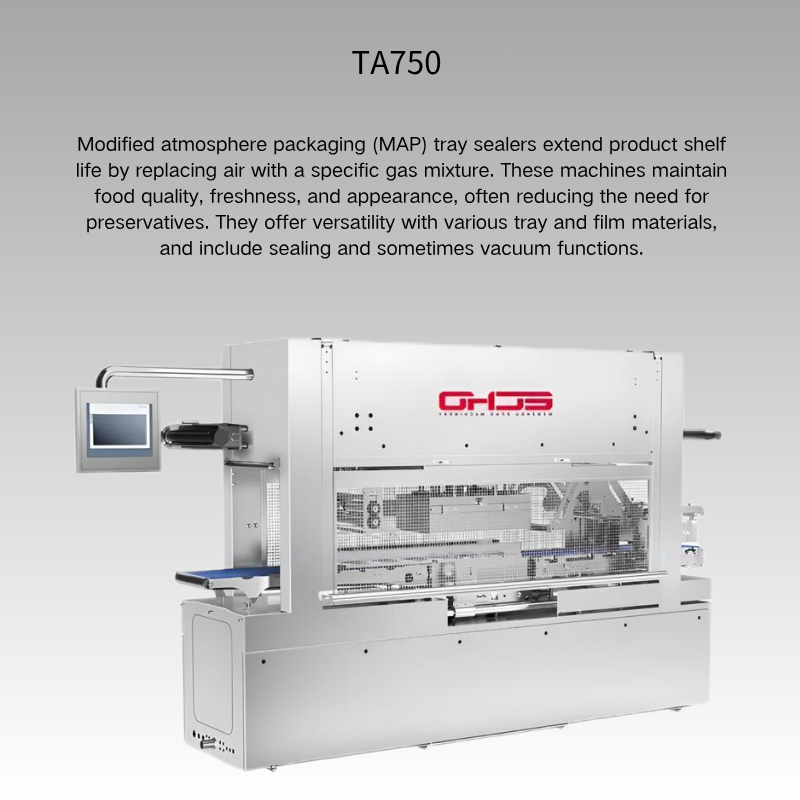

The TA750 is our largest MAP tray sealing machine, with a max mold size of up to 1000×380mm. It carries the strong features of the series, including reliable MAP freshness technology and excellent stability. While keeping all the key advantages, the TA750 offers a more efficient solution for large-size packaging.
- Overview
- Recommended Products

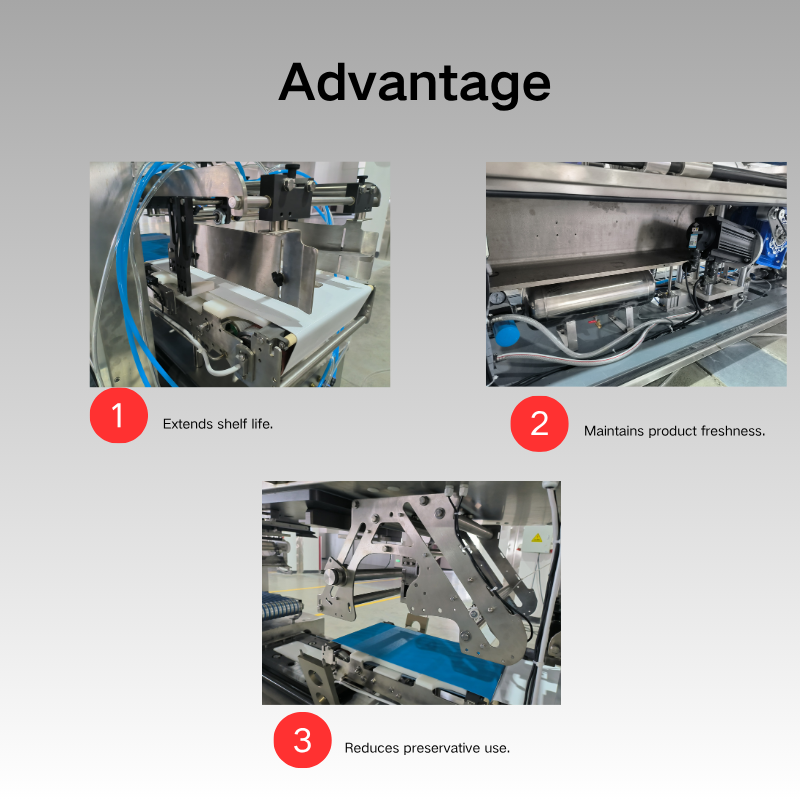

Product Advantages
Innovative Clamping Design
Uses 15–20% less film compared to traditional push-rod systems, helping reduce packaging costs.
Smart Control System
Our self-developed industrial-grade system features a full-color touch screen for precise and stable operation.
Full Food-Grade Stainless Steel Body
Made with seamless forming technology to meet CE hygiene standards.
Stable MAP Technology
Extends product shelf life by 2 to 3 times.
Smart Fault Detection
Helps lower maintenance costs with faster problem-solving.
Product Parameters
| Parameter | TA 350 | TA 360 | TA 750 |
|---|---|---|---|
| Maximum Mold Size | 620*380 millimeters | 760*380 millimeters | 1000*380 millimeters |
| Max. Speed | 48 trays/min | 60 trays/min | 60 trays/min |
| Tray Height | 10-120 millimeters | 10-120 millimeters | 10-120 millimeters |
| Sealing Width | 150-350 millimeters | 150-350 millimeters | 150-350 millimeters |
| Weight | 2000 kilograms | 2200 kilograms | 2700 kilograms |
| Size | 3950*950*2100 millimeters | 3950*950*2100 millimeters | 3850*850*2150 millimeters |
| Power Supply | Three phase 380V 50HZ 18KW | Three phase 380V 50HZ 18KW | Three phase 380V 50HZ 16KW |
